12V 180AH Duration Top Terminal Lead-acid Batteries for utilities, L532mm x W207mm x H210mm
· Excellent cyclic performance thanks to thick plate with excessive active material enables
· Silicon Gel technology applied in electrolyte to prevent water loss and to resist thermal runaway
· Available for multiple applications
· Wide operation temperature range
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 180 Ah@C10 (to 1.80Vpc) |
| Dimension (mm) | L532mm x W207mm x H210mm |
| Approx. Weight | 53.3 kg (117.5 lbs.) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0033 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 45 A |
| Self-Discharge | Approx. 3% per month @ 25°C |
| Ambient Temperature | Discharge: -20~55°C Charge: -20~50 °C Storage: -20~45°C |
| Float Charge Voltage | 13.6V/block @25℃ |
| Equalize Charge Voltage | 14.4V/block @25℃ |
| Container Material | ABS (UL94-V0 optional) |

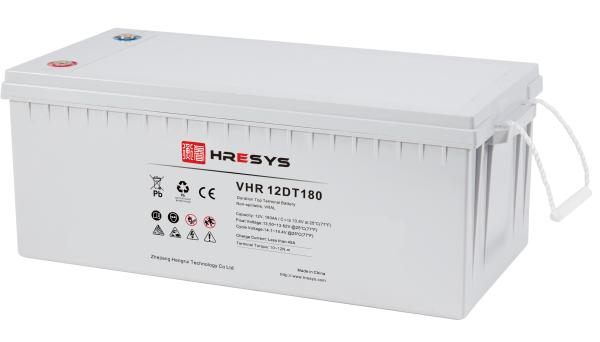

HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS
Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.
With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
o Outdoor telecom
o UPS
o IDC
o Security and alarm system
o Utilities
o Emergency light systems
o CATV
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
· Cyclic Characteristics
High cycle performance: up to 550 cycle at 80%DOD
Product Tags:
|
|
180AH Reliable UPS Lead Acid Battery Wide Operation Temperature Range Images
|
